Display LED di controllo della temperatura

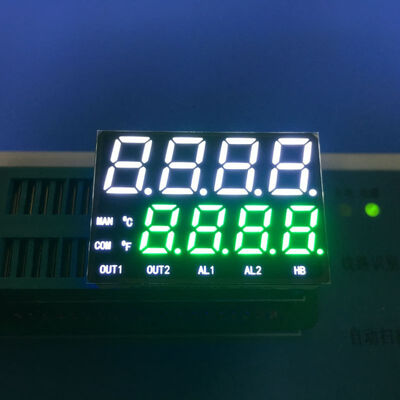

High Bright Dual Line LED Display for Accurate Temperature Monitoring

High Bright Dual Line LED Display for Accurate Temperature Monitoring

Marchio:	LIGHTBO
Numero di modello:	LB2638IWG1B
MOQ:	1000
prezzo:	Negotiate
Condizioni di pagamento:	TT, Unione Occidentale
Capacità di approvvigionamento:	30000 pezzi/giorni

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Shenzhen, Cina

Certificazione:

ISO9001&ROHS

Pacchetto di trasporto:

EPE+Cartone

Polarità:

Catodo comune

materiale:

PCB, resina epossidica, chip LED, plastica

Utilizzo:

Interno/esterno

applicazione:

Pannello di controllo della refrigerazione

Grado di protezione IP:

IP54

CHIP LED:

Epistar

Data di consegna:

5 - 7 giorni

Origine:

Guangdong, Cina (continente)

Mezzi di trasporto:

Oceano, aria, terra

Tipo di montaggio:

Montaggio a pannello

Tempo di risposta:

≤1 secondo

Intensità luminosa:

70-80 mcd

Pixel:

10 mm, 6 mm, tutto, 5 mm, 4 mm

Funzione di visualizzazione:

Video, Animazione, Grafica, Funzione di trasmissione audio, Messaggio

Colore del chip del tubo:

A colori, rosso, blu, colore singolo/doppio, colore singolo e doppio colore

Dimensione dello schermo:

Personalizzato,320*160mm,256x128mm,Monocolore 10240x64;6400x128 Doppio colore 5120x64;3200x128,640*6

Nome del prodotto:

display a led p10, Huidu wireless singolo/doppio colore/cavo USB/rete/scheda di controllo Wi-Fi, sof

Luminosità:

Livello 16 evidenziato,6500cd/mq,1500-3500 cd/mq,1500nit,>2800nit

Durata:

100.000 ore, 000 ore, 100,100.000 ore

Garanzia:

2 anni, 2-3 anni, 3 ~ 5 anni, 1 anno

Colore:

1R1G1B,1 blu,1 rosso,a colori,a colori

Dimensioni del modulo:

320*160,192*192mm,320x160mm,256mm*128mm,320mm*160mm

Peso:

0,1 kg, 3~5 kg/pz, 0,5 kg/10 pezzi

Tensione di lavoro:

4,5 V~6 V, 5 V, 2,5 W

Temperatura di lavoro:

-20℃~70℃

Densità dei pixel:

10.000 punti/mq, 4.000 punti/m2

CHIP LED:

Epistar,Nationstar3535

Tipo LED:

IMMERSIONE

Imballaggi particolari:

EPE+Cartone

Capacità di alimentazione:

30000 pezzi/giorni

Evidenziare:

dual line LED temperature display

high bright LED temperature monitor

accurate temperature monitoring LED display

Descrizione del prodotto

High Bright Dual Line LED Display for Accurate Temperature Monitoring

High-quality customized multicolor invisible 7-segment LED display specifically designed for water dispenser applications, offering excellent visibility and durability.

Technical Specifications

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Electrical & Optical Characteristics

Yellow Green (Code: J)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green (Code: G)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, and Dot Matrix LED Display are widely used for:

Home appliances
Temperature indicators
Humidity indicators
Refrigerator controllers
Thermostat indicators
Heating and cooling control systems

Certifications

Office and Factory Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are original manufacturers with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot Matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing an order, can I get some samples for testing?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; according to order quantity and raw materials. If you have an urgent order and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.

Q6: What are your terms of payment?

A: We accept bank transfer, T/T, Western Union and PayPal for small amounts. Details of payment methods are negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Yes. Please let us know your email address or contact us from our website directly for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will provide the charge to you as requested.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: If I send my design, can you make it for myself only, and will not show it to anyone else?

A: Yes, we will not show it or sell to others without your authorization.

Q13: What will be the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What are the shipping methods?

A: We usually ship goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA, etc. You can also choose other methods that work best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with more than 20 years of experience. We conduct twice 100% testing for all our products before shipment.
