Custom LED Display with High Brightness and Weatherproof Design for Outdoor Applications

Custom LED Display with High Brightness and Weatherproof Design for Outdoor Applications

Marchio: LIGHTBO
Numero di modello: LB3280EWH-3S-T1-D
MOQ: 1000
prezzo: Negotiate
Condizioni di pagamento: TT, Unione Occidentale
Capacità di approvvigionamento: 50000 pezzi/giorni
Informazioni dettagliate
Luogo di origine:
Shenzhen, Cina
Certificazione:
ISO9001&ROHS
Polarità:
Anodo comune
Pixel:
10 mm, 6 mm, 8 mm, 2,5 mm, n
Dimensione dello schermo:
Dimensioni personalizzate, 496x496 mm, 40,5 * 16,0 mm, Realizzato su misura, lungo 50 cm
Colore del chip del tubo:
A colori, rosso, verde, blu, colore personalizzato
Utilizzo:
Interno, Esterno, Semi-esterno, bancone, lavatrice
Funzione di visualizzazione:
Video, grafica, animazione, foto, immagine
Garanzia:
2 anni, 3 anni, 5 anni, 2-3 anni, due anni
Nome del prodotto:
Display a LED per interni P5, display numerico a LED con cifre HQ-CP50, acquisto orologio per il con
Luminosità:
5000cd/mq,6000 cd/m2,400-1000cd/mq,Alta luminosità,1800CD
Durata:
100.000 ore, 100.000 ore, 000 ore
Dimensioni del modulo:
160x160mm,320mm*160mm,288*120mm,576mm*576mm,512*512mm
Circuito integrato principale:
Epistar, Stella della nazione, Sanan, Cree + Nichia + Epistar + Opto + Silan
Colore:
A colori, 1R1G1B, personalizzato
Dimensioni del mobile:
496x496x62mm,500mm x 500mm,512*5120mm,500*500mm,Su misura
Passo pixel:
Display a LED a noleggio da 6 mm, P3,91 mm, P4,81 mm, 4,2,5 mm
Applicazione:
Pannelli pubblicitari per interni ed esterni, pubblicità per interni ed esterni a led, elettrodomest
Densità dei pixel:
27777 punti/m2,65536,16000 punti/mq
Articolo:
display a led a colori flessibile, display a led personalizzato anodo da 0,56 pollici, display a led
Alimentazione elettrica:
G-energy,CL,alimentazione CA o 12V CC,MeanWell o lo stesso marchio di qualità,MeanWell
Materiale del mobile:
ferro, alluminio pressofuso, magnesio e lega di alluminio
Imballaggi particolari:
EPE+Cartone
Capacità di alimentazione:
50000 pezzi/giorni
Descrizione del prodotto
Custom LED Display Configurations

Robust structural design and weatherproofing for optimal performance in outdoor settings

Product Overview

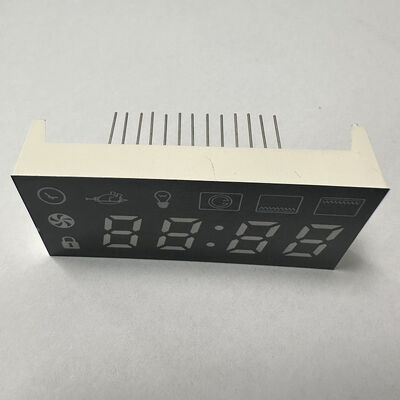

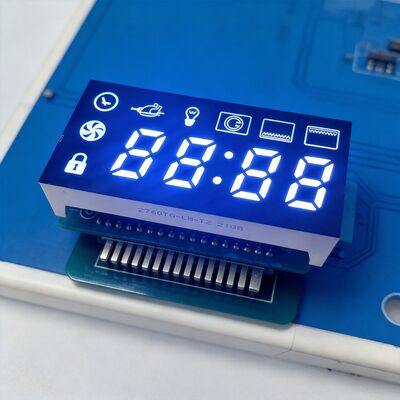

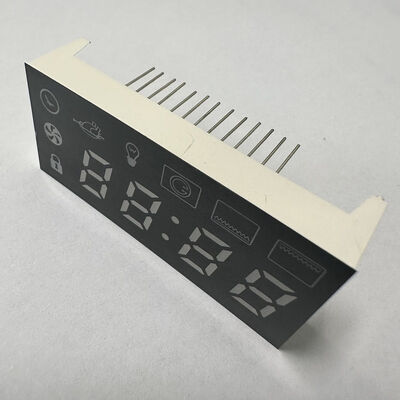

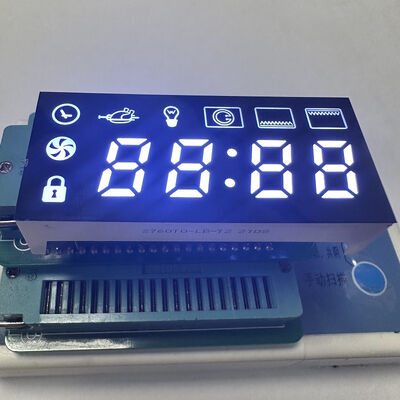

Ultra Bright LED Display for Ovens with Customizable Features. High-performance LED displays engineered for industrial applications with superior brightness and reliability.

Product Features
  • Forward voltage with high luminous intensity output
  • Low power consumption
  • Extremely low current operation
  • Evenly distributed luminous segments
  • Industrial standard size compatibility
  • Excellent reliability in bright ambient light
  • Stable performance characteristics
  • Long operational lifetime
  • RoHS/REACH compliant
Applications
  • Audio equipment and instrument panels
  • Home electronic appliances
  • Numeric displays and indicators
  • Multimedia products
  • Digital indicators for temperature, humidity, and process monitoring
Technical Specifications
Absolute Maximum Ratings (Ta=25ºC)
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Power Dissipation (per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature (≤3 seconds) Th 260 ºC
Yellow Green - J
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 30 40 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 569 574 nm
Amber/Yellow - Y
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.5 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 60 80 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 585 595 nm
Additional color variants available including Yellow Green, Amber/Yellow, Orange, Super Bright Red, Ultra Bright Red, Ultra Bright Blue, and Ultra Bright White with detailed specifications available upon request.
Product Applications
Custom LED Display with High Brightness and Weatherproof Design for Outdoor Applications 0

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display - widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, specializing in R&D, manufacturing and sales of optoelectronic LED displays. ISO 9001:2015 Quality Management Systems certified with over 15 years of OEM and ODM experience.

Certifications
Custom LED Display with High Brightness and Weatherproof Design for Outdoor Applications 1
Office and Factory Overview
Custom LED Display with High Brightness and Weatherproof Design for Outdoor Applications 2 Custom LED Display with High Brightness and Weatherproof Design for Outdoor Applications 3 Custom LED Display with High Brightness and Weatherproof Design for Outdoor Applications 4 Custom LED Display with High Brightness and Weatherproof Design for Outdoor Applications 5
Company Exhibitions
Custom LED Display with High Brightness and Weatherproof Design for Outdoor Applications 6 Custom LED Display with High Brightness and Weatherproof Design for Outdoor Applications 7
Shipping Services
Custom LED Display with High Brightness and Weatherproof Design for Outdoor Applications 8 Custom LED Display with High Brightness and Weatherproof Design for Outdoor Applications 9
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.
Q2: What are your main products?
Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through Hole LEDs, SMD LEDs, LED Backlights, and more.
Q3: What is your MOQ?
Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.
Q4: Can I get samples for testing before placing an order?
Yes. We provide 5-10 free samples for testing, with freight costs borne by the customer.
Q5: How long is your delivery time?
Delivery time is approximately 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.
Q6: What are your payment terms?
We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.
Q7: Can you provide FOB prices?
Yes. We quote prices based on INCOTERMS including EXW, FOB, CIF, and DDP.
Q8: How can I get your catalog and price list?
Please provide your email address or contact us directly through our website.
Q9: Can I negotiate prices?
Yes, we offer discounts for bulk orders.
Q10: How much are shipping charges?
Shipping costs depend on shipment size and method. We provide quotes upon request.
Q11: Do you offer custom design services?
Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.
Q12: Will you keep my custom design confidential?
Yes, we will not share or sell your design to others without authorization.
Q13: What is the lead time for customized product samples?
Sample lead time is approximately 20-25 working days after receiving mold cost and design approval.
Q14: What shipping methods do you use?
We ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.
Q15: How do you ensure product quality?
As ISO 9001 certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
