Customized Multicolor Invisible 7-Segment LED Display with Water Dispensers

Customized Multicolor Invisible 7-Segment LED Display with Water Dispensers

Marchio:	LIGHTBO

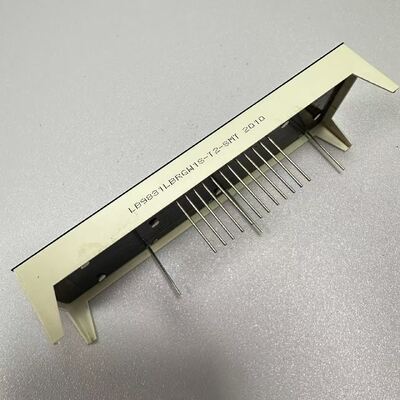

Numero di modello:	LB9831LBRGW1S-T2-SMT
MOQ:	1000
prezzo:	Negotiate
Condizioni di pagamento:	TT, Unione Occidentale
Capacità di approvvigionamento:	30000 pezzi/giorni

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Shenzhen, Cina

Certificazione:

ISO9001&ROHS

Pacchetto di trasporto:

EPE+Cartone

Polarità:

Catodo comune

materiale:

PCB, resina epossidica, chip LED, plastica

Utilizzo:

Interno/esterno

applicazione:

Pannello di controllo della refrigerazione

Grado di protezione IP:

IP54

CHIP LED:

Epistar

Dimensioni dello schermo:

2 cifre

Data di consegna:

5 - 7 giorni

Origine:

Guangdong, Cina (continente)

Mezzi di trasporto:

Oceano, aria, terra

Tipo di montaggio:

Montaggio a pannello

Tempo di risposta:

≤1 secondo

Intensità luminosa:

70-80 mcd

Pixel:

10 mm, 6 mm, tutto, 5 mm, 4 mm

Funzione di visualizzazione:

Video, Animazione, Grafica, Funzione di trasmissione audio, Messaggio

Colore del chip del tubo:

A colori, rosso, blu, colore singolo/doppio, colore singolo e doppio colore

Dimensione dello schermo:

Personalizzato,320*160mm,256x128mm,Monocolore 10240x64;6400x128 Doppio colore 5120x64;3200x128,640*6

Nome del prodotto:

display a led p10, Huidu wireless singolo/doppio colore/cavo USB/rete/scheda di controllo Wi-Fi, sof

Luminosità:

Livello 16 evidenziato,6500cd/mq,1500-3500 cd/mq,1500nit,>2800nit

Durata:

100.000 ore, 000 ore, 100,100.000 ore

Garanzia:

2 anni, 2-3 anni, 3 ~ 5 anni, 1 anno

Colore:

1R1G1B,1 blu,1 rosso,a colori,a colori

Dimensioni del modulo:

320*160,192*192mm,320x160mm,256mm*128mm,320mm*160mm

Peso:

0,1 kg, 3~5 kg/pz, 0,5 kg/10 pezzi

Tensione di lavoro:

4,5 V~6 V, 5 V, 2,5 W

Temperatura di lavoro:

-20℃~70℃

Densità dei pixel:

10.000 punti/mq, 4.000 punti/m2

CHIP LED:

Epistar,Nationstar3535

Tipo LED:

IMMERSIONE

Imballaggi particolari:

EPE+Cartone

Capacità di alimentazione:

30000 pezzi/giorni

Evidenziare:

multicolor invisible LED display

7-segment LED display for water dispensers

custom temperature control LED display

Descrizione del prodotto

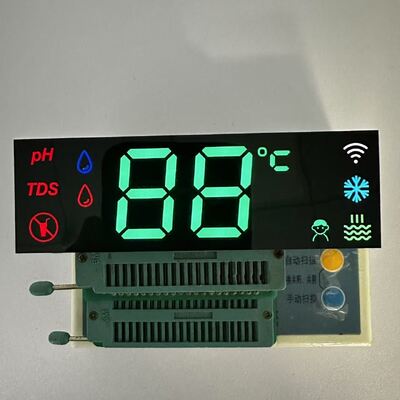

Customized Multicolor Invisible 7-Segment LED Display for Water Dispensers

High-quality customized multicolor invisible 7-segment LED display specifically designed for water dispenser applications, offering excellent visibility and durability.

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Electrical & Optical Characteristics

Yellow Green (Code: J)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green (Code: G)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, and Dot Matrix LED Display are widely used for:

Home appliances
Temperature indicators
Humidity indicators
Refrigerator controllers
Thermostat indicators
Heating and cooling control systems
