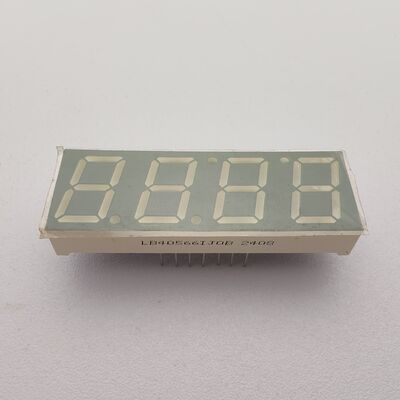

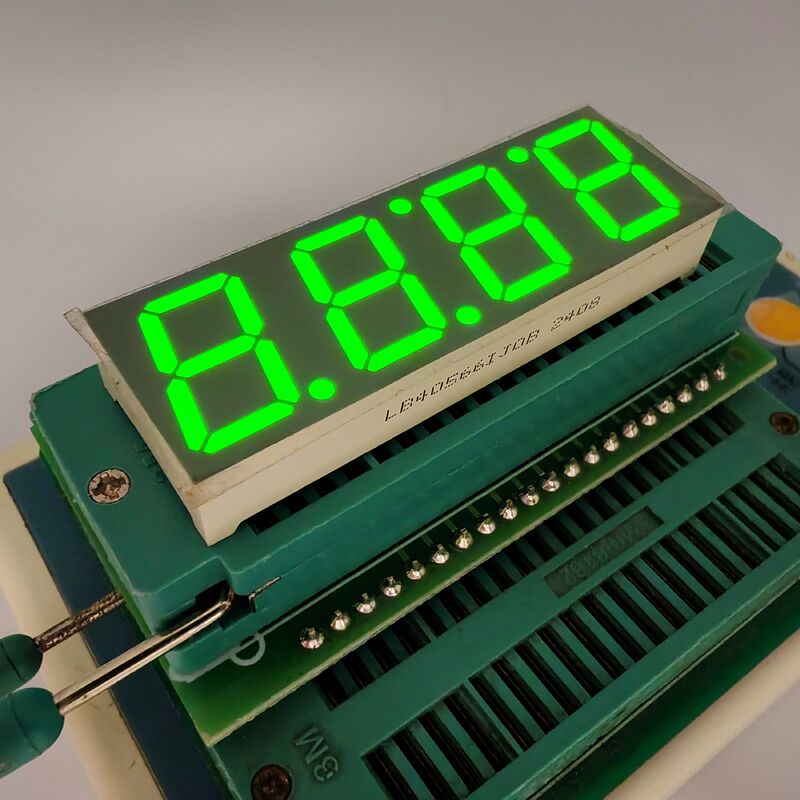

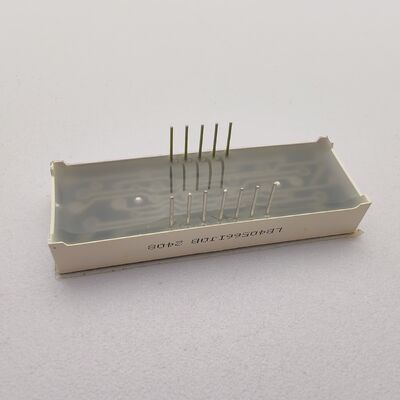

4-Digit 7-Segment LED in Yellow-Green, Designed for Induction Cookers

4-Digit 7-Segment LED in Yellow-Green, Designed for Induction Cookers

Marchio:	LIGHT-BO
Numero di modello:	LB40566LJ0B
MOQ:	1000
prezzo:	Negotiate
Condizioni di pagamento:	T/T, Unione Occidentale
Capacità di approvvigionamento:	20000pcs/giorno

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Shenzhen, Cina

Certificazione:

ISO9001&RoHS

Documento:

Colore del chip del tubo:

Verde giallo

Tensione diretta:

1,8-2,4 V/LED

Display_Type:

Catodo comune

Lunghezza d'onda:

569-574 nm

Intensità luminosa:

30-40 mcd

Spettro con valore dimezzato:

Imballaggi particolari:

EPE+Cartone

Capacità di alimentazione:

20000pcs/giorno

Evidenziare:

4-digit 7-segment LED display

yellow-green 7-segment LED

induction cooker LED display

Descrizione del prodotto

4-Digit 7-Segment LED Display for Induction Cookers

Product Specifications

Part Number	LB40566LJ0B	Custom part number printing available
Digit Number	4 Digits	2, 3, 4, 5, or 6 digits available
Digit Height	14.22 MM (0.56 inch)	Range: 0.25" to 5.0"
Display Color	Yellow-Green	White, blue, pure green, yellow-green, orange, etc.
Module Size (L×W×H)	50.4 × 17.1 × 8.0 MM	Other custom sizes supported
Polarity	Common Anode	Common Cathode also available
Lifespan	80,000 hours	-
Free Samples	Available	-
Sample Lead Time	5-7 working days	Tooling samples: 15-20 working days
Production Lead Time	15-20 working days	Varies based on order quantity
OEM/ODM Services	Supported	Based on customer drawings or concepts
LOGO Printing	Supported	Based on customer artwork
Minimum Order Quantity (MOQ)	1,000 PCS	Initial orders of 100-500 PCS negotiable

Key Features

High luminous intensity output with forward voltage optimization for bright, readable displays

Low power consumption for energy-efficient appliance integration

Extremely low current requirements without compromising performance

Evenly distributed luminous segments for uniform display quality

Industrial standard size for seamless compatibility

Excellent reliability in bright ambient light conditions

Stable performance for demanding applications

Long operational lifetime of 80,000 hours

RoHS/REACH compliant for environmental safety

Technical Parameters

Yellow Green - J/JU

Vivid yellow-green display optimized for custom design requirements and enhanced visual aesthetics.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Warm amber/yellow hue providing inviting glow and visual appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Absolute Maximum Ratings (Ta=25 ºC)

Comprehensive performance metrics for exceptional reliability across various conditions.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

About Manufacturer

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leader in OEM and ODM services since 2006. With ISO 9001:2015 certification and over 15 years of experience, we deliver innovative, cost-effective custom solutions that enhance competitive advantages globally.

Applications

Our 7-Segment LED Displays, Customized LED Displays, Numeric LED Displays, and Dot Matrix LED Displays are engineered for seamless integration into home appliances, temperature and humidity controls, refrigerator controllers, thermostats, and HVAC systems, delivering superior performance and quality.

Certifications

Manufacturing Facilities

Company Exhibitions

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7-Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through-hole LEDs, SMD LEDs, and LED Backlights.

Q3: What is your MOQ?

A: Our MOQ is 1,000 PCS, but we can accept sample orders and small orders with quantities less than our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes. We can provide 5-10 free samples for testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time is typically 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.
