Multi-color Ultra-thin Custom 7 Segment Led Display For E-cigarette

Multi-color Ultra-thin Custom 7 Segment Led Display For E-cigarette

Marchio:	LIGHTBO
Numero di modello:	LB3315LWGRBY1B-KF-D
MOQ:	1000 pezzi
prezzo:	0.1-1.0USD/PCS
Condizioni di pagamento:	,T/T,Unione Occidentale
Capacità di approvvigionamento:	30000 PZ/Giorni

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Shenzen, Cina

Certificazione:

RoHs,ISO9001

Imballaggi particolari:

Cartone EPE+

Capacità di alimentazione:

30000 PZ/Giorni

Evidenziare:

multi-color 7 segment LED display

ultra-thin custom LED display

e-cigarette 7 segment display

Descrizione del prodotto

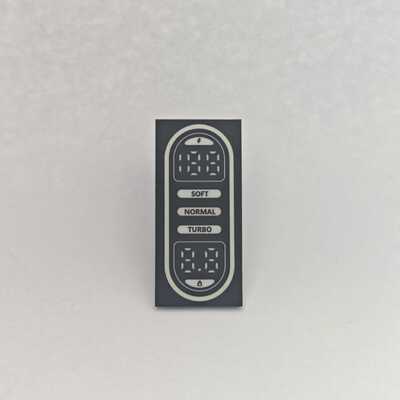

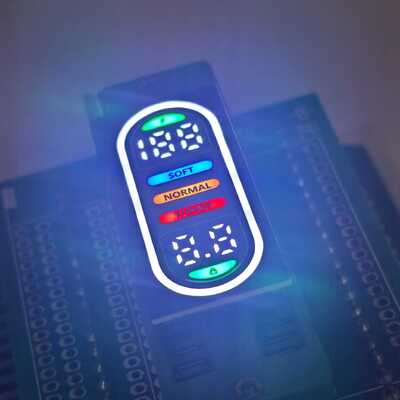

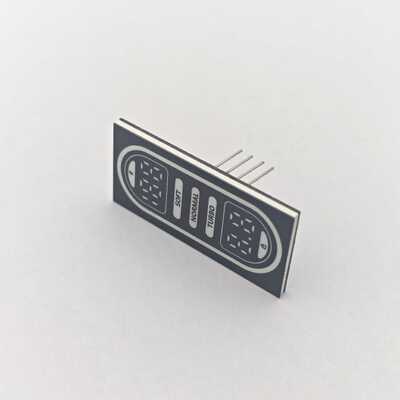

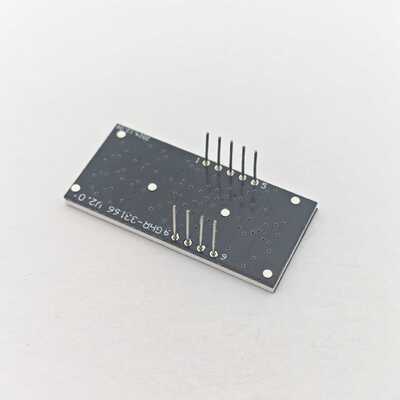

Multi-color Ultra-thin Custom 7 Segment LED Display For E-cigarette

Product Specifications

Parameter	Standard	Options
Part Number	LB3315LWGRBY1B-KF-D	Custom part numbers available
Digit Number	188 8.8	1, 2, 3, 5, or 6 digits
Digit Height	0.25" - 5.0"	Various sizes available
Color	White, Red, Blue, Yellow, Green	Red, blue, pure green, yellow-green, orange, etc.
Size	33*15mm	Custom sizes supported
Polarity	Common Cathode	Common Anode available
Life Span	100,000 hours
Free Samples	Available

Ordering Information

Service	Details
Sample Lead Time	5-7 working days (15-20 days for tooling samples)
Production Lead Time	15-20 working days (based on order quantity)
OEM & ODM	Supported based on customer drawings or concepts
LOGO Printing	Available based on customer specifications
MOQ	1000 PCS (100-500 PCS accepted for first orders)

Technical Specifications

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40 to +85	°C
Storage Temperature Range	Tstg	-40 to +85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Super Bright Red (Code: -R)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright White (Code: -WH)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	2.8	3.2	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	120	140	mcd
LED Color Temperature	K	If=10mA	5500	6000	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32	0.30,0.33	nm

Pure Green (Code: -G)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Blue (Code: -B)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Product Applications

Digital Clocks and Timers: Widely used to display numerical time values in hours, minutes, and seconds. Offers high visibility and low power consumption for continuous operation.
Electronic Meters and Measuring Instruments: Commonly found in voltmeters, ammeters, and frequency counters. Provides clear and precise numerical readouts for measurement data.
Household Appliances: Used in microwave ovens, washing machines, and air conditioners. Displays temperature, time, or operational settings for user convenience.
Industrial Control Panels: Integrated into monitoring and control systems for process parameters. Ensures reliable numeric indication in harsh environments.
Consumer Electronics: Found in calculators, remote controls, and digital scales. Offers simple numeric interfaces with minimal design complexity.
Automotive Displays: Applied in dashboards for showing speed, fuel level, or error codes. Provides bright, easily readable output under varying light conditions.
Public Information Systems: Utilized in price boards, scoreboards, and counters. Delivers large, legible numerical data for public viewing.

Certifications

Office and Factory Overview

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO)
Established in 2006, we are a company that integrates R&D, manufacturing and sales of optoelectronics LED Displays. We are ISO 9001:2015 Quality Management Systems certified company with more than 15 years OEM and ODM experience.

LIGHTBO has been committed to provide high quality and low cost customized solutions to help customers reduce cost and enhance competitiveness.

Packaging & Shipping

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 PCS, but we can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, can I get some samples for testing?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time is about 10-20 days, depending on order quantity and raw materials. For urgent orders with available raw materials, we can adjust production to deliver within 7-10 days.

Q6: What are your terms of payment?

A: We accept bank transfer, T/T, Western Union and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Please provide your email address or contact us directly through our website for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will provide charges based on your requirements.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors and functional icons according to your requirements.

Q12: If I send my design, can you make it exclusively for me and not show it to anyone else?

A: Yes, we will not show or sell your design to others without your authorization.

Q13: What is the samples lead time for customized products?

A: Samples lead time is about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What are the shipping methods?

A: We usually ship goods by DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with more than 20 years experience. We conduct twice 100% testing for all products before shipment.
