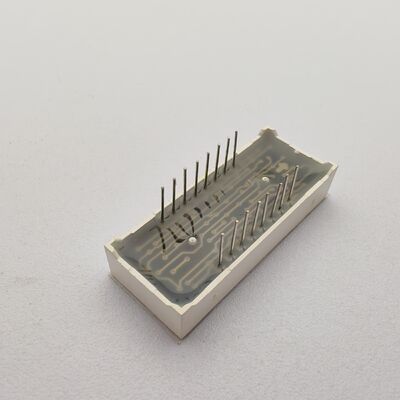

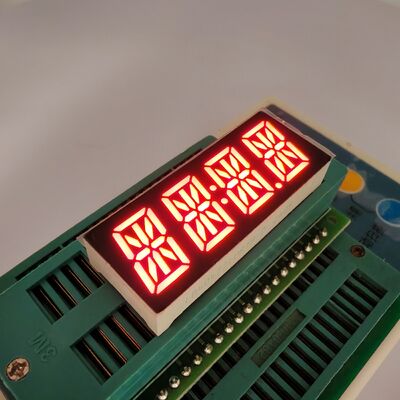

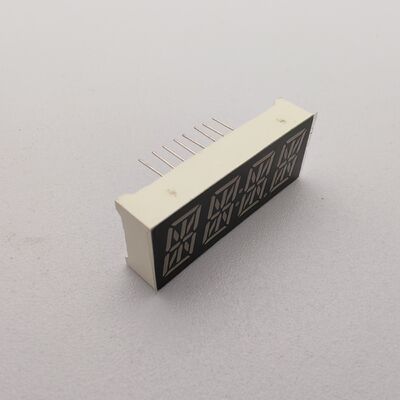

Ultra Bright Red 14-Segment Display: 4-Digit Alphanumeric LED for Smart Appliances & Devices

Ultra Bright Red 14-Segment Display: 4-Digit Alphanumeric LED for Smart Appliances & Devices

Marchio:	LIGHT-BO
Numero di modello:	LB40472IUR1B-D
MOQ:	1000
prezzo:	Negotiate
Condizioni di pagamento:	T/T, Unione Occidentale
Capacità di approvvigionamento:	20000pcs/giorno

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Shenzhen, Cina

Certificazione:

ISO9001&RoHS

Documento:

Colore del chip del tubo:

rosso ultra brillante

Tensione diretta:

1.8-2.2V/LED

Display_Type:

Anodo comune

Lunghezza d'onda:

460-465nm

Intensità luminosa:

120-140 mcd

Spettro con valore dimezzato:

Imballaggi particolari:

EPE+Cartone

Capacità di alimentazione:

20000pcs/giorno

Evidenziare:

4-digit alphanumeric LED display

ultra bright red 14-segment display

LED display for smart appliances

Descrizione del prodotto

Ultra Bright Red 14-Segment Display: 4-Digit Alphanumeric LED

High-performance 4-digit alphanumeric LED display featuring ultra bright red illumination, designed for smart appliances and electronic devices requiring exceptional visibility and reliability.

Product Specifications

Part Number	LB40472IUR1B-D	Custom part number marking available
Digit Number	4 Digits	2, 3, 4, 5, or 6 digits available
Digit Height	11.95 MM (0.47 inch)	Range: 0.25" to 5.0"
Display Color	Ultra Bright Red	White, blue, pure green, yellow-green, orange, etc.
*Module Size (LWH)*	40 * 16 * 8 mm	Other custom sizes supported
Polarity	Common Anode	Common Cathode also available
Lifespan	80,000 hours	-
Free Samples	Available	-
Sample Lead Time	5-7 working days	Tooling samples: 15-20 working days
Production Lead Time	15-20 working days	Varies according to order quantity
OEM/ODM Services	Fully Supported	Based on customer drawings or concepts
LOGO Printing	Supported	Based on customer artwork
Minimum Order Quantity (MOQ)	1,000 PCS	Initial orders of 100-500 PCS negotiable

Key Features & Benefits

Low forward voltage with high luminous intensity for enhanced visual appeal
Energy-efficient operation with low power consumption and operating current
Uniformly illuminated segments ensuring consistent brightness and clarity
Industrial-standard package for seamless integration into existing designs
Excellent readability in bright ambient lighting for indoor/outdoor applications
Stable and reliable performance across various operating conditions
Long operating lifetime reducing replacement frequency
Compliant with RoHS and REACH environmental standards

Technical Parameters

Yellow Green - J/JU

Transform your displays with a spectrum of dynamic and vivid colors, carefully curated to enhance your design vision and elevate visual appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Embrace the inviting warmth and captivating glow of amber/yellow, creating displays that draw attention with their cozy allure.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F

Energize your displays with our vibrant orange hue, ensuring your presentation captivates with its striking and lively presence.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

Immerse your audience in the dazzling brilliance of super bright red, crafting displays that capture attention with their radiant allure.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR

Amplify your display's allure with our ultra bright red, offering unmatched visibility and a commanding presence that captivates.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH

Invigorate your display with ultra bright blue, delivering a cool, modern aesthetic that brings a refreshing edge to any environment.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH

Achieve exceptional clarity with ultra bright white, elevating your display to a new dimension of brilliance and sophisticated elegance.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Delve into the robust performance characteristics that underscore the advanced capabilities of our cutting-edge LED display technology.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) is a paragon of OEM and ODM services excellence since 2006. Certified under ISO 9001:2015, our 15-year legacy is a testament to our unwavering commitment to innovation and quality.

LIGHTBO empowers clients with premium, cost-effective custom solutions that not only reduce expenses but also enhance competitive advantages in the global market.

Product Applications

Our 7 Segment LED Displays, Customized LED Displays, Numeric LED Displays, and Dot Matrix LED Displays lead innovation and design. They seamlessly integrate into diverse applications, boosting both function and style. Whether upgrading home appliances, offering precise temperature and humidity readings, or developing solutions for refrigerator controllers, thermostats, and HVAC systems, our products exemplify superior performance and quality. Discover the unique synergy of technology and design with Shenzhen Guangzhibao Technology Co., Ltd.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping & Transportation

Frequently Asked Questions

Q1: Are you trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and so on.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, Can I get some samples for test?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order, and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.

Q6: What is your terms of payment?

A: We accept bank transfer, T/T, Western Union and Paypal with small amount. Details of payment methods can be negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Yes. Please let us know your email address or contact us from website directly for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q11: Can you do custom design products?

A: Yes, OEM & ODM service are available. We can customize the sizes, LED color and functional icons according to your requirements.

Q12: If I send my design, can you make it for myself only, and will not show it to any one else?

A: Yes, we will not show it or sell to others without your authorization.

Q13: What will be the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What is the shipping methods?

A: We usually ship the goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA etc, also you can choose the other way that best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with more than 20 years experience. We conduct twice 100% percent test for all of our products before shipment.
